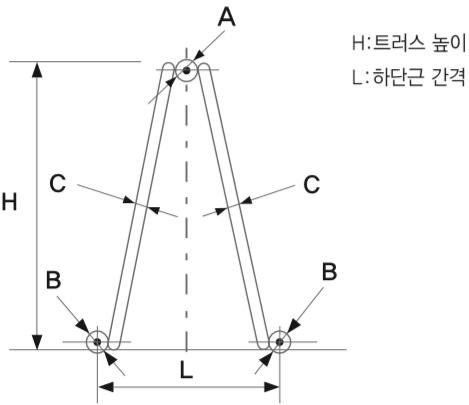

트러스높이(H) | 70~300㎜ |
---|---|

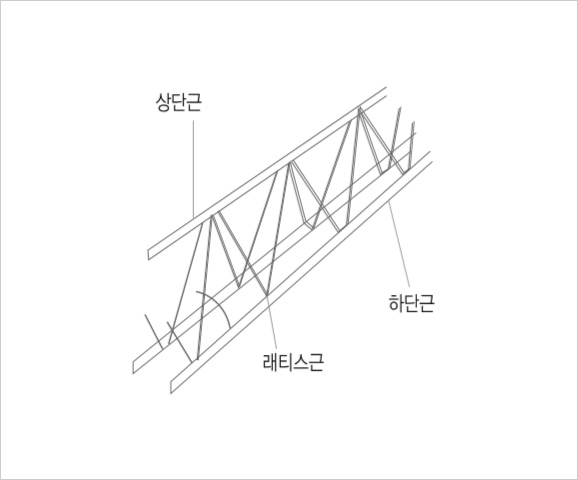

상단근(A) | 5~14㎜ |
하단근(B) | 5~14㎜ |

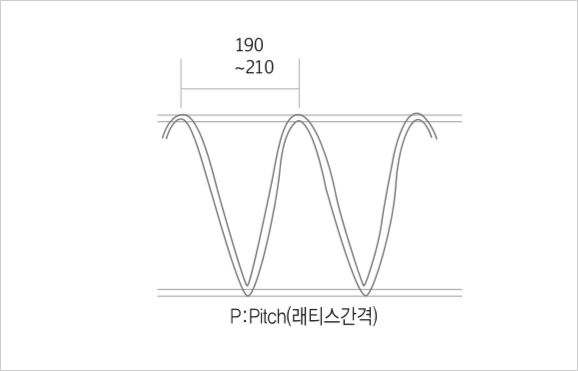

래티스근(C) | 5~7㎜ |
하단근폭(L) | 56~80㎜ |
GIRDER HEIGHT (㎜) |
2 TRUSS WIRES (㎜) 래티스근 |
LOWER CHORDS Ø (㎜) |
UPPER CHORD (㎜) 상단근 |
||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
트러스높이 | Ø5 | Ø6 | Ø7 | 하단근 | Ø5 | Ø6 | Ø7 | Ø8 | Ø9 | Ø10 | Ø11 | Ø12 | Ø13 | Ø14 | |
70 | 0.146 | 0.599 | 0.815 | + | 5/5 | 0.462 | 0.530 | 0.610 | 0.703 | 0.808 | 0.925 | 1.054 | 1.196 | 1.350 | 1.517 |
80 | 0.436 | 0.628 | 0.854 | + | 5.5/5.5 | 0.528 | 0.596 | 0.676 | 0.769 | 0.874 | 0.991 | 1.120 | 1.262 | 1.416 | 1.583 |
90 | 0.454 | 0.655 | 0.893 | + | 5/6 | 0.530 | 0.598 | 0.678 | 0.771 | 0.876 | 0.993 | 1.122 | 1.264 | 1.418 | 1.585 |
100 | 0.477 | 0.688 | 0.939 | + | 6/6 | 0.598 | 0.666 | 0.746 | 0.839 | 0.944 | 1.061 | 1.190 | 1.332 | 1.486 | 1.653 |
110 | 0.501 | 0.722 | 0.984 | + | 6/7 | 0.678 | 0.746 | 0.826 | 0.919 | 1.024 | 1.141 | 1.270 | 1.412 | 1.566 | 1.733 |
120 | 0.524 | 0.755 | 1.029 | + | 7/7 | 0.758 | 0.826 | 0.906 | 0.999 | 1.104 | 1.221 | 1.350 | 1.492 | 1.646 | 1.813 |
130 | 0.547 | 0.788 | 1.072 | + | 7/8 | 0.851 | 0.919 | 0.999 | 1.092 | 1.197 | 1.314 | 1.443 | 1.585 | 1.739 | 1.906 |
140 | 0.570 | 0.821 | 1.120 | + | 8/8 | 0.944 | 1.102 | 1.092 | 1.185 | 1.290 | 1.407 | 1.536 | 1.678 | 1.832 | 1.999 |
150 | 0.593 | 0.855 | 1.165 | + | 8/9 | 1.049 | 1.117 | 1.197 | 1.290 | 1.395 | 1.512 | 1.641 | 1.783 | 1.937 | 2.104 |
160 | 0.616 | 0.888 | 1.210 | + | 9/9 | 1.154 | 1.222 | 1.302 | 1.395 | 1.500 | 1.617 | 1.746 | 1.888 | 2.042 | 2.209 |
170 | 0.639 | 0.921 | 1.256 | + | 9/10 | 1.271 | 1.339 | 1.419 | 1.512 | 1.617 | 1.734 | 1.863 | 2.005 | 2.159 | 2.326 |
180 | 0.662 | 0.955 | 1.304 | + | 10/10 | 1.388 | 1.456 | 1.536 | 1.629 | 1.734 | 1.851 | 1.980 | 2.112 | 2.276 | 2.443 |
190 | 0.693 | 0.999 | 1.371 | + | 10/11 | 1.517 | 1.585 | 1.665 | 1.758 | 1.863 | 1.980 | 2.109 | 2.251 | 2.405 | 2.572 |
200 | 0.724 | 1.043 | 1.422 | + | 11/11 | 1.646 | 1.714 | 1.794 | 1.887 | 1.992 | 2.109 | 2.238 | 2.380 | 2.534 | 2.701 |
210 | 0.752 | 1.803 | 1.476 | + | 11/12 | 1.788 | 1.856 | 1.936 | 2.029 | 2.134 | 2.251 | 2.380 | 2.522 | 2.676 | 2.843 |
220 | 0.779 | 1.123 | 1.534 | + | 12/12 | 1.930 | 1.998 | 2.078 | 2.171 | 2.276 | 2.393 | 2.522 | 2.664 | 2.818 | 2.985 |
230 | 0.807 | 1.163 | 1.588 | + | 12/13 | 2.084 | 2.152 | 2.232 | 2.325 | 2.430 | 2.547 | 2.676 | 2.818 | 2.972 | 3.139 |
240 | 0.835 | 1.203 | 1.642 | + | 13/13 | 2.238 | 2.306 | 2.386 | 2.479 | 2.584 | 2.701 | 2.830 | 2.972 | 3.126 | 3.293 |
250 | 0.862 | 1.243 | 1.694 | + | 13/14 | 2.405 | 2.473 | 2.553 | 2.646 | 2.751 | 2.868 | 2.997 | 3.139 | 3.293 | 3.460 |
260 | 0.890 | 1.283 | 1.751 | + | 14/14 | 2.572 | 2.640 | 2.720 | 2.813 | 2.918 | 3.035 | 3.164 | 3.306 | 3.460 | 3.627 |
270 | 0.921 | 1.328 | 1.811 | ||||||||||||
280 | 0.947 | 1.365 | 1.863 | ||||||||||||
290 | 0.975 | 1.405 | 1.917 | ||||||||||||
300 | 1.001 | 1.443 | 1.971 |
